Haoru UWBFollowing Vehicles

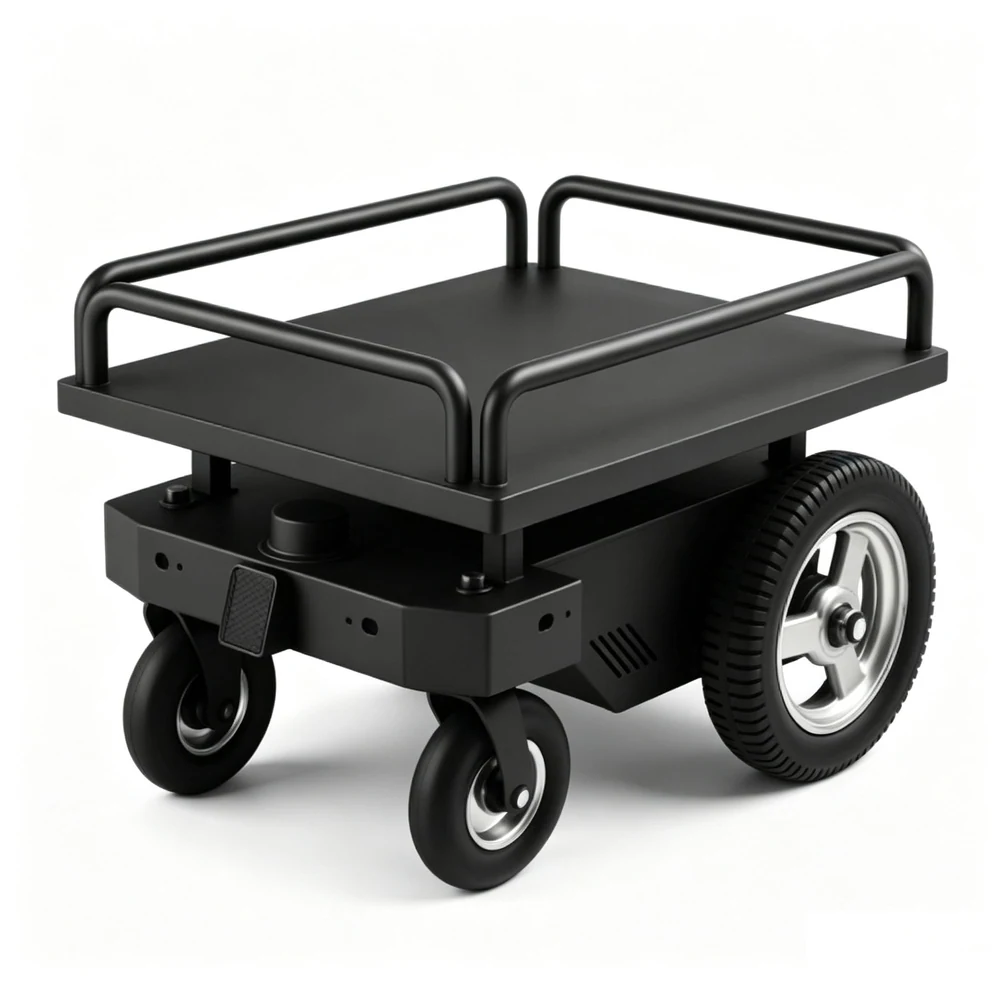

Two-Wheel-Drive Automatic Following Vehicle
A two-wheel-drive UWB following vehicle with configurable obstacle sensing, payload and runtime options, and customizable dimensions.

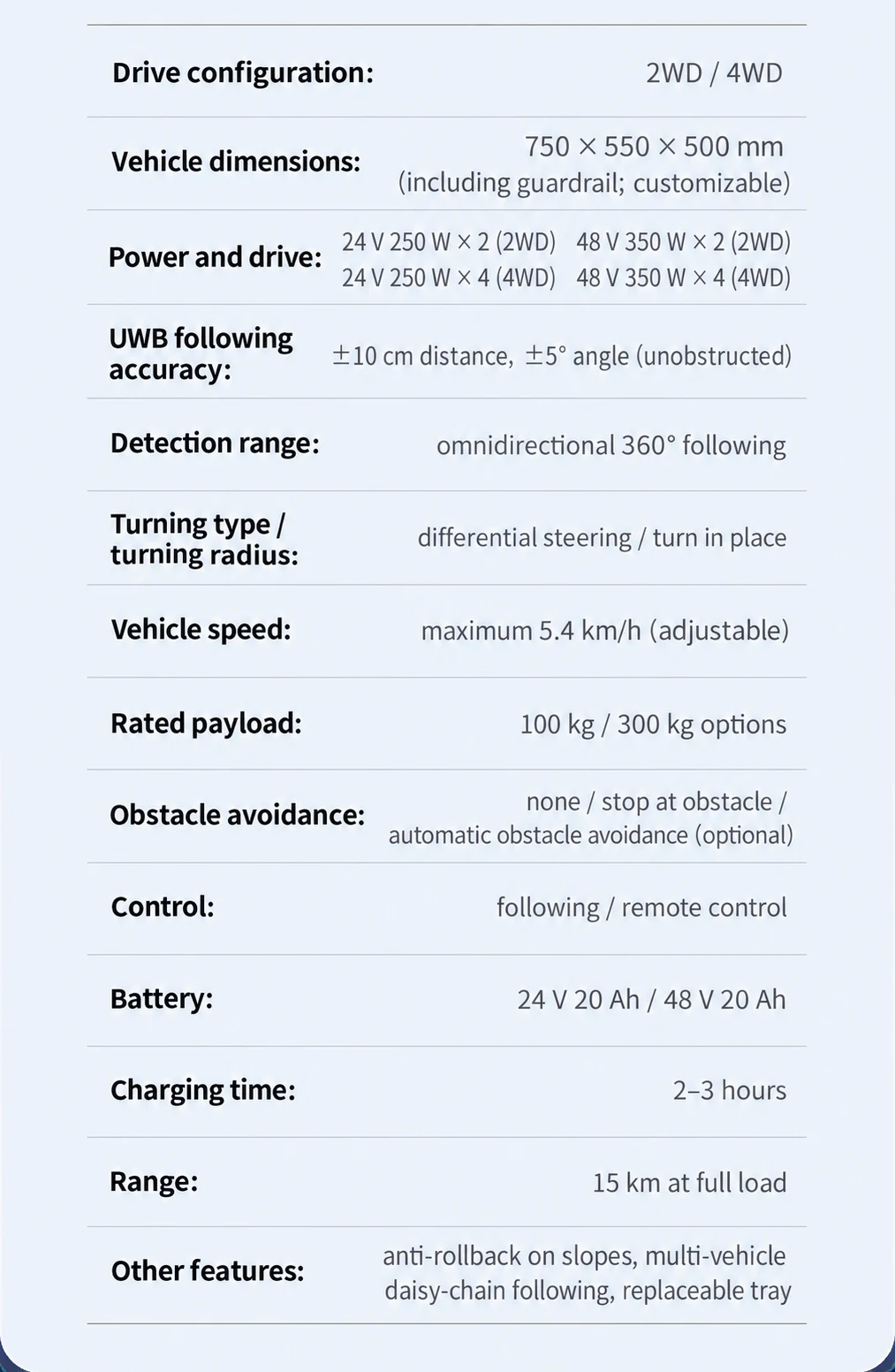

Specifications
Specifications
Key Specifications
- Drive Arrangement
- Two-Wheel / Four-Wheel Drive, depending on SKU

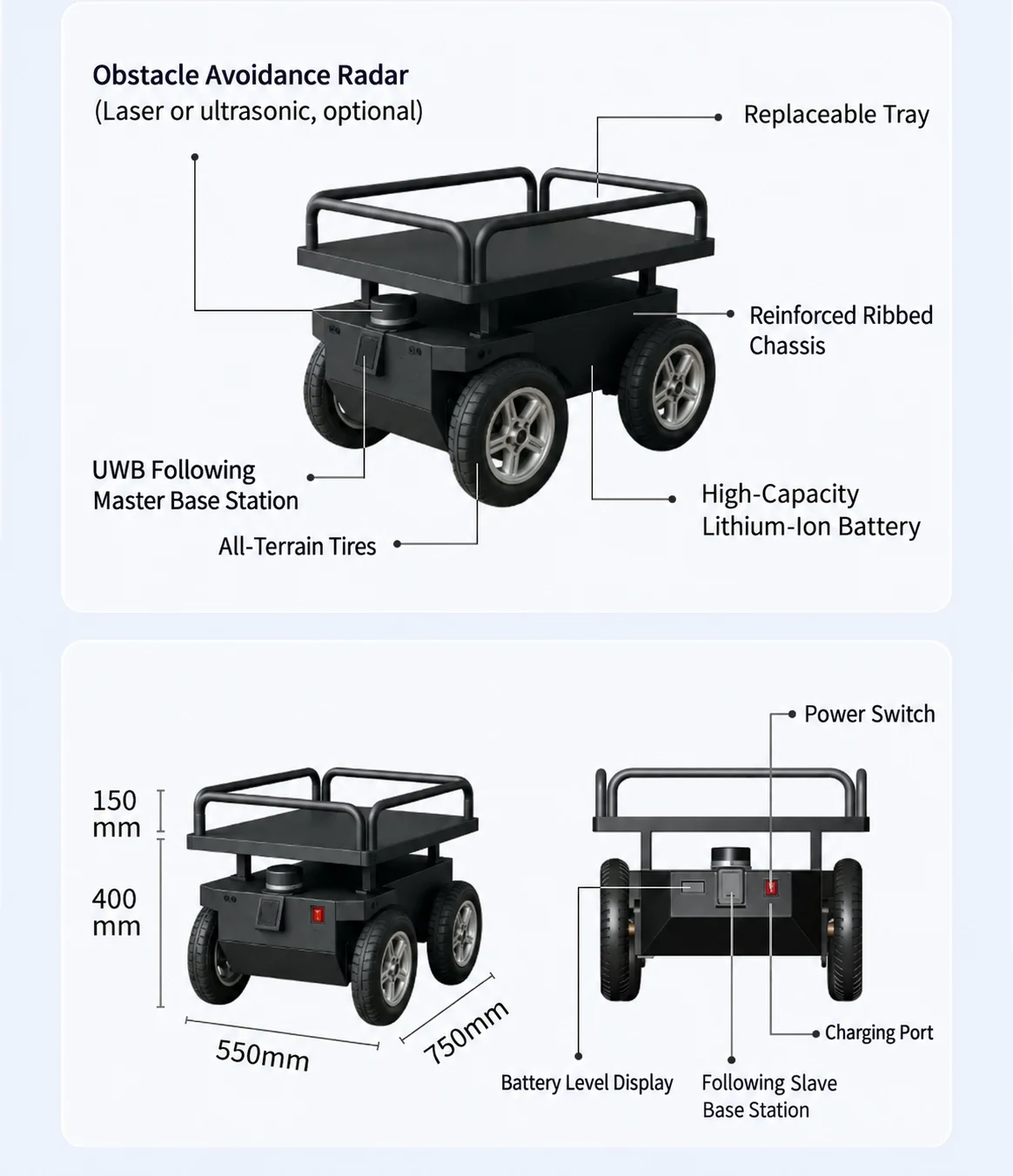

- Vehicle Dimensions
- 750 × 550 × 500, including guardrails; customizable. Confirm the source unit and vehicle configuration.
- Drive System
- 24V/48V
- Following Measurement Accuracy
- Distance ±10cm; angle ±5°. The source uses a typographic sign that requires confirmation.
- Detection Coverage
- Two-Anchor Omnidirectional 360° Following
- Steering / Turning Radius
- Differential Steering / Turn in Place
- Vehicle Speed
- Up to 5.4KM/H, adjustable
- Rated Payload
- 300KG
- Obstacle Mode
- Disabled / Stop / Bypass, as configured
- Control Modes
- Following / Remote Control
- Charging Time
- 2 hours
- Operating Range / Runtime
- 15KM
- Additional Functions

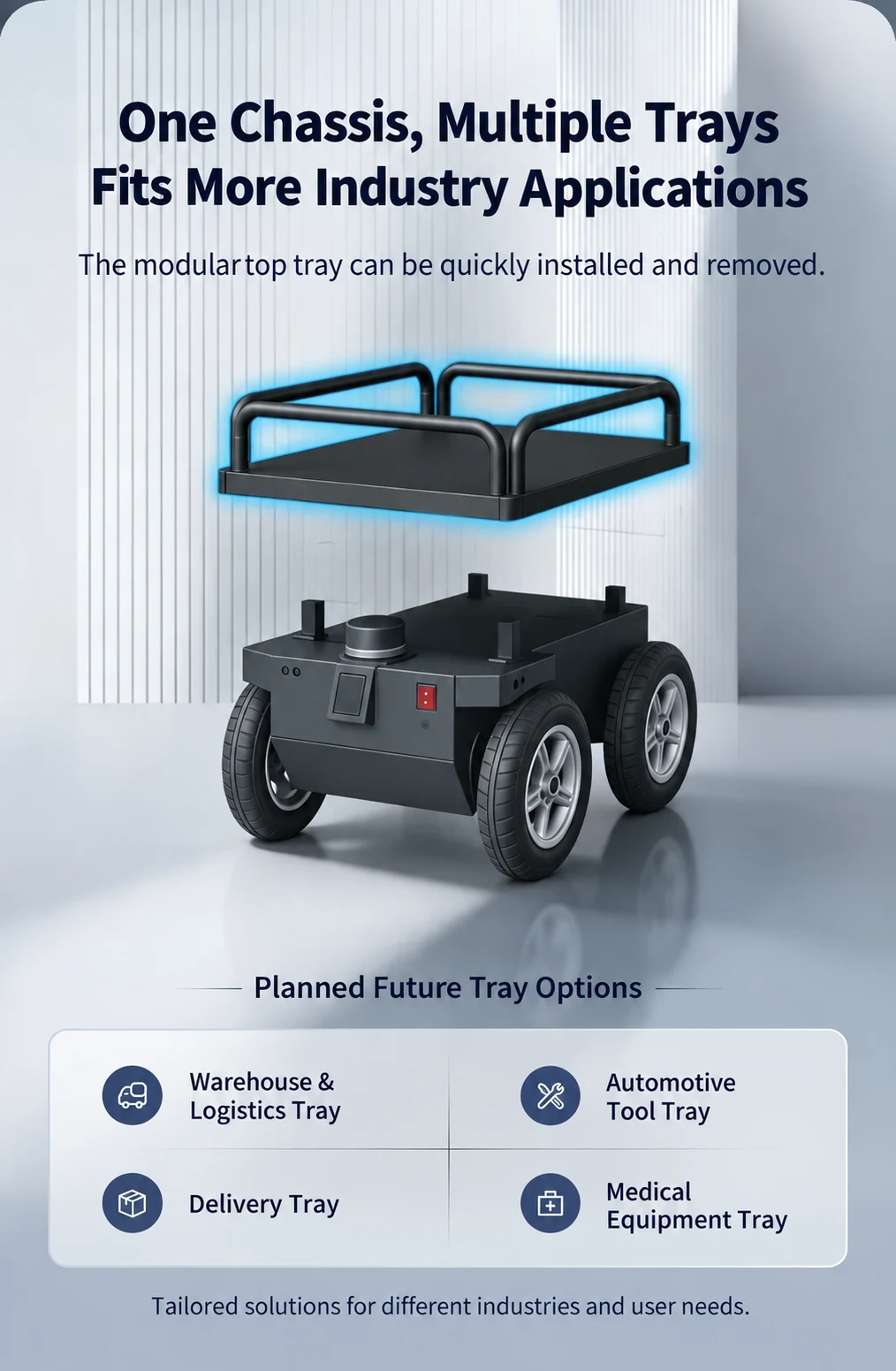

- Slope anti-roll protection; convoy following; replaceable tray; one-button recall
Detail
Product details

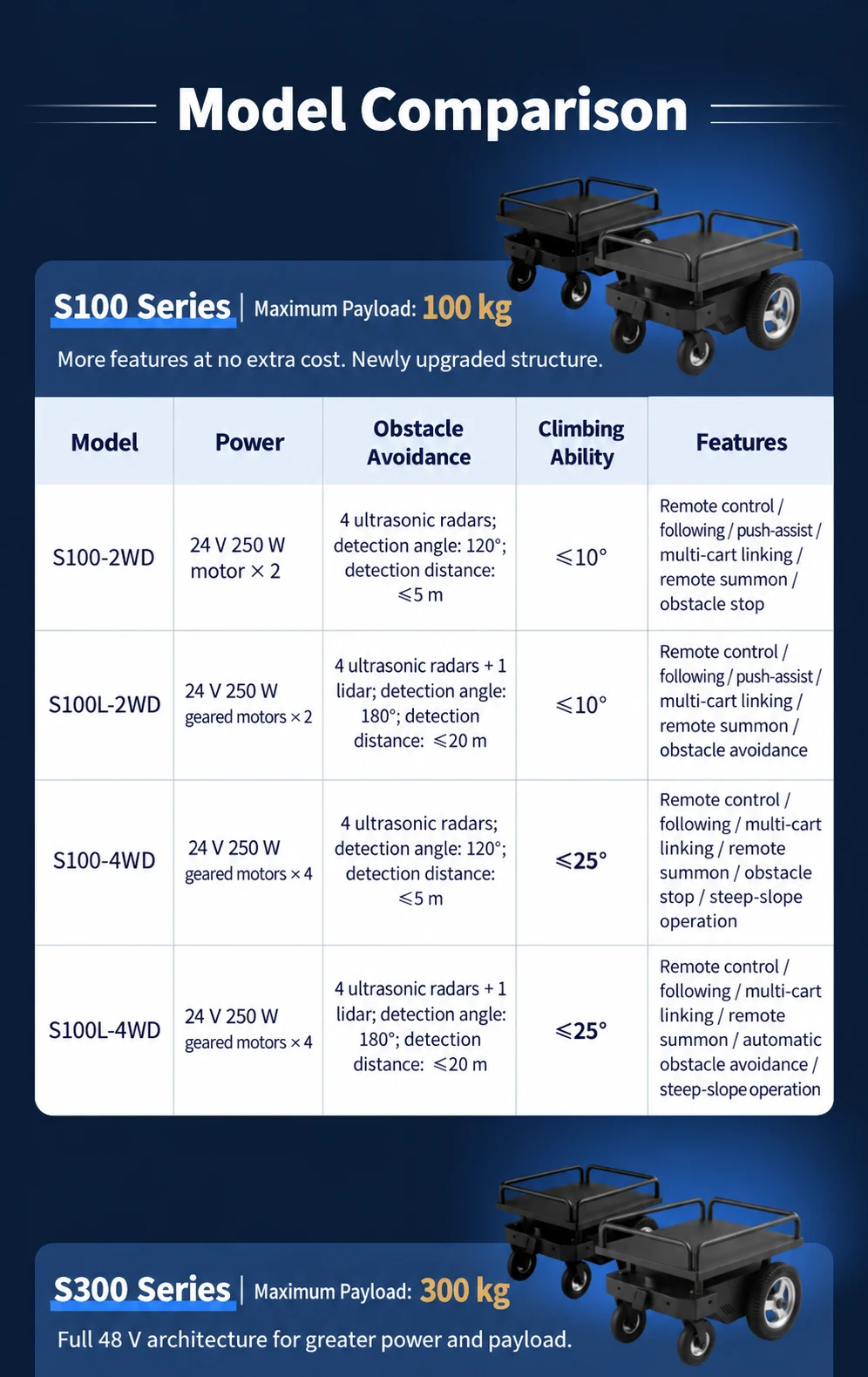

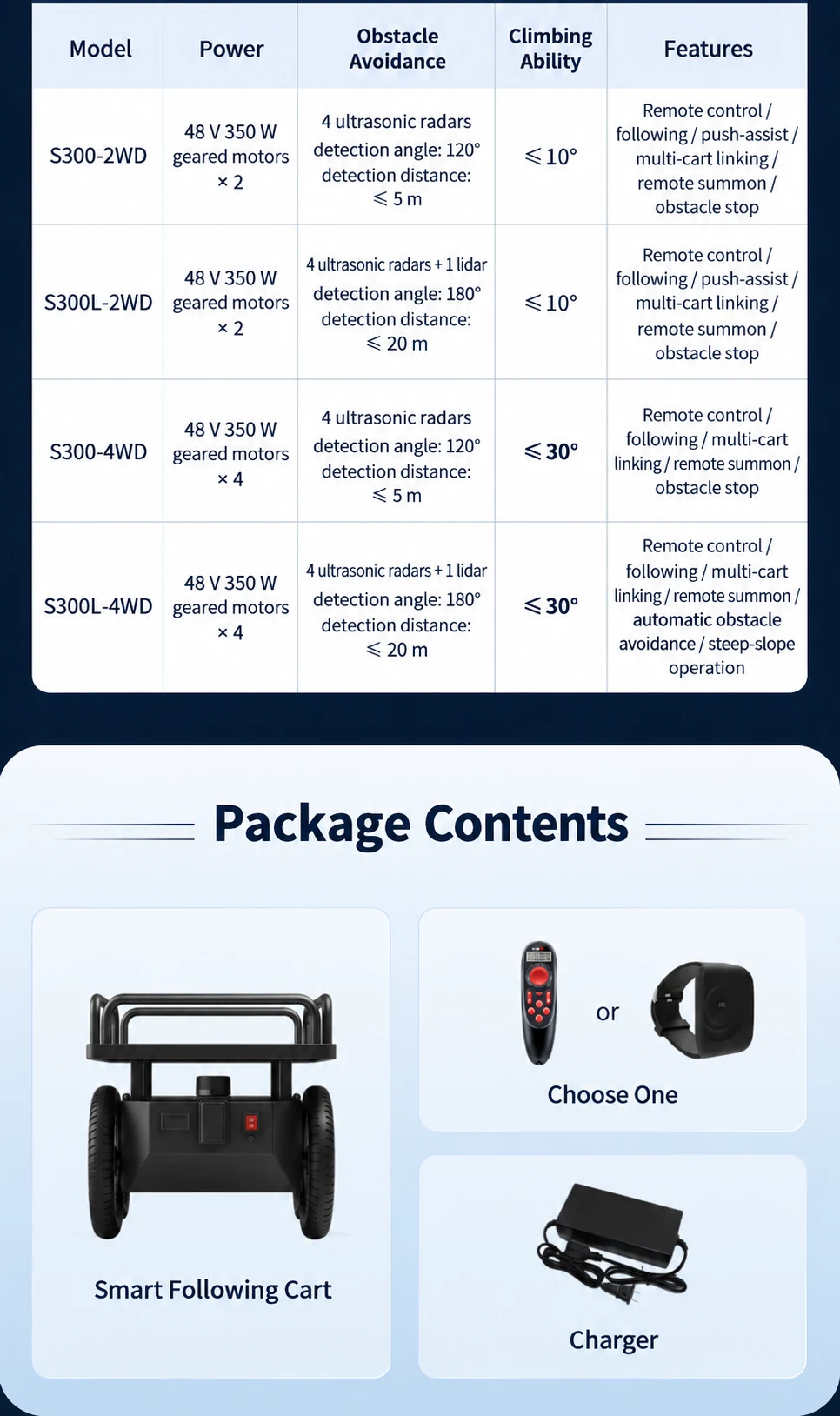

Variants
Models & configurations
24V Two-Wheel-Drive Version
100KG-2WD-24V
View specifications ＋
24V Two-Wheel-Drive Version
100KG-2WD-24V
Key Specifications
- Drive
- 2WD; two 24V 250W motors
- Maximum Speed
- 4.8km/h
- Operating Range / Runtime
- 15km / 8 hours under factory working conditions
- Climbing Capability
- ≤10°
Downloads
Related resources
FAQ
FAQ
What is the accuracy of a following vehicle?
In ideal, unobstructed conditions, the source gives distance accuracy of approximately ±10cm and angular accuracy of approximately ±5°. Human-body blockage and complex metal environments can affect performance.
Can the following vehicle's LiDAR operate outdoors in strong sunlight?
The source states that the supplied LiDAR is designed to resist strong sunlight. Confirm the sensor model and its operating conditions for the intended installation.
Can I develop custom software for the complete following vehicle?
The complete vehicle is supplied as a finished solution, including its chassis and systems, and the source does not support custom development of that complete vehicle. A following kit includes the controller, anchors, tag and motor drive, without the chassis, for integration into an existing vehicle. Core boards are generally supplied with the kit rather than sold separately.

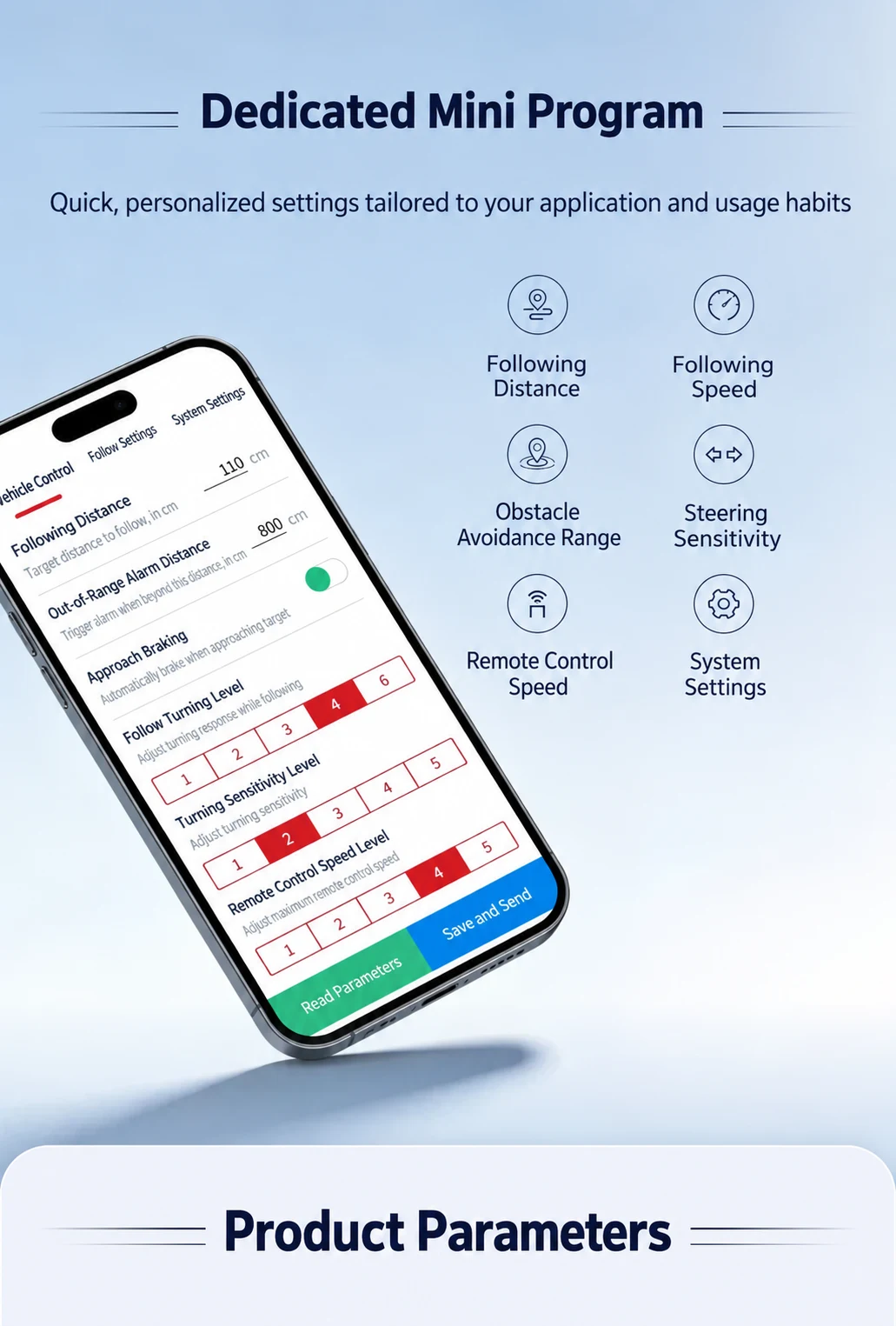

Can I control the following vehicle through an app?
A mobile mini program is available for parameter configuration. The source does not offer app-based vehicle driving control.
What operating range or runtime does the following vehicle provide?
The source gives a travel range of 15km and approximately eight hours of operation under factory working conditions.
What are the dimensions of the following vehicle?
The referenced vehicle measures 750 × 550 × 500mm, including its guardrails. The source notes that dimensions may vary; the delivered product takes precedence.
