TWR vs TDoA vs PDoA: Choosing a UWB System

Choosing a UWB positioning system starts with the output your application needs: distance between two devices, coordinates within a work area, or the direction of a person relative to a robot. TWR, TDoA and PDoA contribute different measurements. A system can combine ranging and angle measurement, so these terms do not describe three completely interchangeable products.

TWR: measure distance, then calculate position

Two-way ranging (TWR) estimates distance from the timing of radio exchanges between devices. In a multi-anchor RTLS, measurements to anchors with known coordinates support calculation of a tag's position. Haoru HR-RTLS1 provides this development path with compatible modules, tags, configuration tools and positioning software.

TWR is a useful starting point when engineers want to inspect individual range measurements, build a small evaluation setup or integrate serial output into their own application. Anchor geometry still matters: a precise range reading is not itself a complete 2D or 3D position. The system also schedules radio exchanges, so the required tag count and per-tag update rate must be considered together.

TDoA: plan synchronization and the positioning engine

Time difference of arrival (TDoA) positioning uses the differences between the arrival times of a tag's transmission at multiple anchors. Timing relationships between anchors and known anchor coordinates are essential to interpreting those measurements. The positioning engine converts the collected observations into coordinates.

The Haoru HR-RTLS4 documentation describes a TDoA system with anchor network configuration, a host positioning engine and development materials. Its UTM1 anchor setup uses Wi-Fi and UDP reporting. Plan the network, anchor synchronization, tag operating settings and host integration as one system. TDoA can be appropriate for multi-tag RTLS, but capacity and update rate depend on the selected implementation; a large tag-count claim from another system is not a specification for this one.

PDoA: add direction for relative positioning and following

Phase difference of arrival (PDoA) measures a phase difference across antennas to support angle-of-arrival (AoA) estimation. Combined with a compatible range measurement, it can provide the relative distance and direction needed by a following controller.

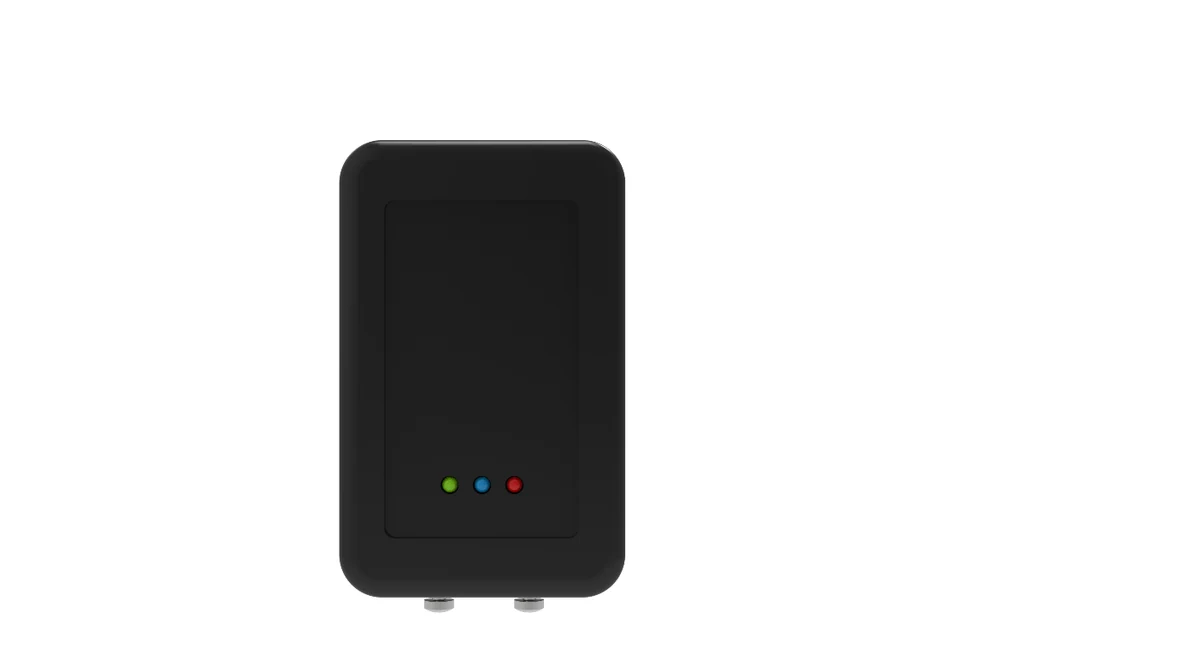

The ULM3-PDOA module is a DW3220-based dual-antenna anchor with USB/TTL serial output. Its manual describes a forward angular coverage of -60° to +60°. This single-module coverage must not be confused with the operating coverage of a complete omnidirectional following kit. Mounting, supported tags, firmware and calibration all affect the usable result. A PDoA module supplies measurements; a vehicle additionally needs motion control, a suitable drive system and the selected obstacle sensors.

Match the method to your integration task

• Distance measurement or a small multi-anchor development setup: start with HR-RTLS1 and the appropriate ULM or long-range modules.
• Networked indoor positioning for multiple tags: evaluate HR-RTLS4, including timing, anchor coverage and the host engine.
• A robot or cart that follows a carried tag: evaluate ULM3-PDOA or a complete following kit, depending on how much vehicle control you already have.
• 3D tracking: define the required vertical accuracy and anchor geometry separately; displaying data in a 3D view does not establish 3D measurement performance.

What to send us for a useful recommendation

Specify the operating area, indoor or outdoor conditions, tag count, target update rate per tag, accuracy definition, mounting constraints and host interface. For a moving platform, also describe the chassis, payload, motor driver and desired behavior when the tag is lost or the path is blocked. These details are more useful than requesting the highest advertised range alone.

Compare the HR-RTLS1 TWR system, HR-RTLS4 TDoA system, ULM3-PDOA module and UWB following kit. The linked product pages identify the applicable manuals and their languages. For installation planning, continue with UWB accuracy and anchor placement.
